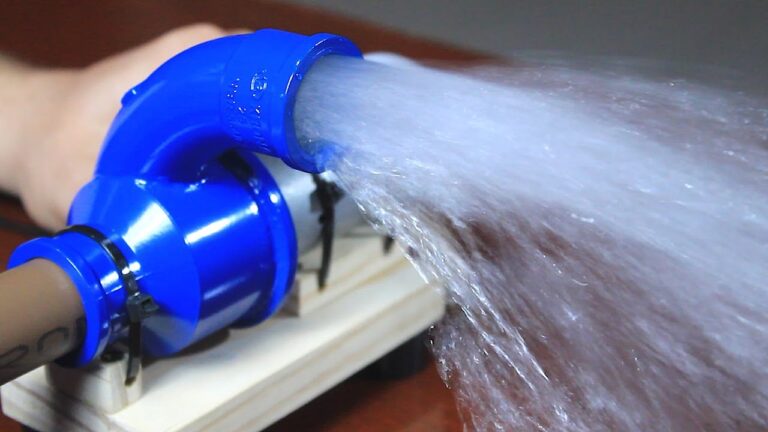

Creating a homemade water pump can be a rewarding project that demonstrates basic principles of hydraulics and engineering. This DIY tutorial will guide you through building a simple but powerful water pump using readily available materials. This type of pump can be useful for small garden projects, circulating water for a pond, or any situation where you need to move water from one place to another.
Materials Needed:
Plastic bottle (2-liter soda bottle works well)
Two check valves (one for inlet, one for outlet)
Silicone tubing (suitable for the size of the check valves)
Epoxy or waterproof sealant
Scissors or a sharp knife
Zip ties
A small electric motor (can be sourced from old appliances or bought online)
Battery or power supply for the motor
Small fan blade or impeller (can be taken from old electronics or crafted from plastic)
Instructions:
Prepare the Bottle:
Cut the bottom off the plastic bottle to create a cylinder. This bottle will serve as the housing for the pump mechanism.
Install Inlet and Outlet:
Drill two holes in the cap of the bottle: one for the inlet and one for the outlet. Ensure these are slightly smaller than the diameter of your tubing for a tight fit.
Attach a check valve to each piece of tubing — one for pulling water in (inlet) and one for pushing it out (outlet).
Thread the tubes through the holes in the cap, attaching the inlet on the lower side of the cap and the outlet on the top.
Secure the tubing with epoxy or waterproof sealant around the edges to prevent leaks.
Assemble the Motor and Impeller:
Attach the small fan blade or impeller to the shaft of the motor. Ensure it’s securely fastened and centered to prevent wobbling.
Position the motor so that the impeller is inside the bottle and aligns with the bottle cap when closed.
